Swimming pool dehumidifiers

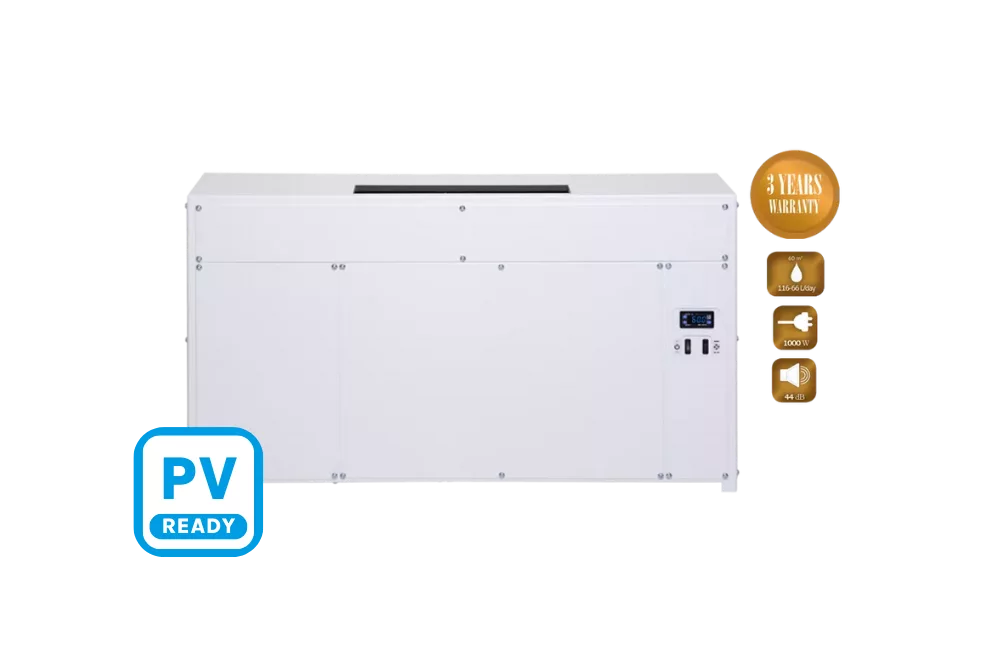

DRY 500Duct

DRY 300 | 30 m²
DRY 400 | 45 m²
DRY 500 | 60 m²
DRY 800 | 90 m²
DRY 1200 | 120 m²
Pool size
50 m²
Extraction
68 l

Top extraction - Best efficiency

MICROWELL DRY 500 is comprehensive solution for indoor swimming pool environment control. Monitoring and regulating humidity and air temperature, MICROWELL DRY 500 is suitable for medium pools, wellnesses or hot tubs. Operating on the condensation principle, it provides constant, reliable and highly effective heat recovery with the highest efficiency. Its low sound emisions and exclusive design makes MICROWELL DRY 500 top innovative solution for indoor pools.

Ducted dehumidifier is a safety solution, because all electric is in a technical room, or somewhere where safety and dry microclimate.

Extended lifetime warranty, click and learn more.

Where to buy
Size guide
Model
Pool surface
Extraction rate
Extraction rate
Air flow
Pool room Min/Max
DRY 300 WAVE 30 m² 36 l/24hrs/60% RH, 30C/ 48 l/24hrs/80% RH, 30C/ 550 m³/H Min 80 m³ / Max 275 m³
DRY 400 WAVE 45 m² 48 l/24hrs/60% RH, 30C/ 58 l/24hrs/80% RH, 30C/ 600 m³/H Min 85 m³ / Max 300 m³
DRY 500 WAVE 60 m² 66 l/24hrs/60% RH, 30C/ 101 l/24hrs/80% RH, 30C/ 800 m³/H Min 100 m³ / Max 400 m³
DRY 800 WAVE 90 m² 90 l/24hrs/60% RH, 30C/ 136 l/24hrs/80% RH, 30C/ 1100 m³/H Min 135 m³ / Max 550 m³
DRY 1200 WAVE 120 m² 120 l/24hrs/60% RH, 30C/ 181 l/24hrs/80% RH, 30C/ 1200 m³/H Min 145 m³ / Max 625 m³

Not sure which dehumidifier

should you choose?
How choose a heat pump?

Key data

Noise Level | DRY 500 - Microwell
Noise Level
44 dB
Heat Recovery | DRY 500 - Microwell
Heat Recovery
3500 W
Power Consumption | DRY 500 - Microwell
Power Consumption
1000 W
Air Flow | DRY 500 - Microwell
Air Flow
800 m³/h

Customize your

Dehumidifier

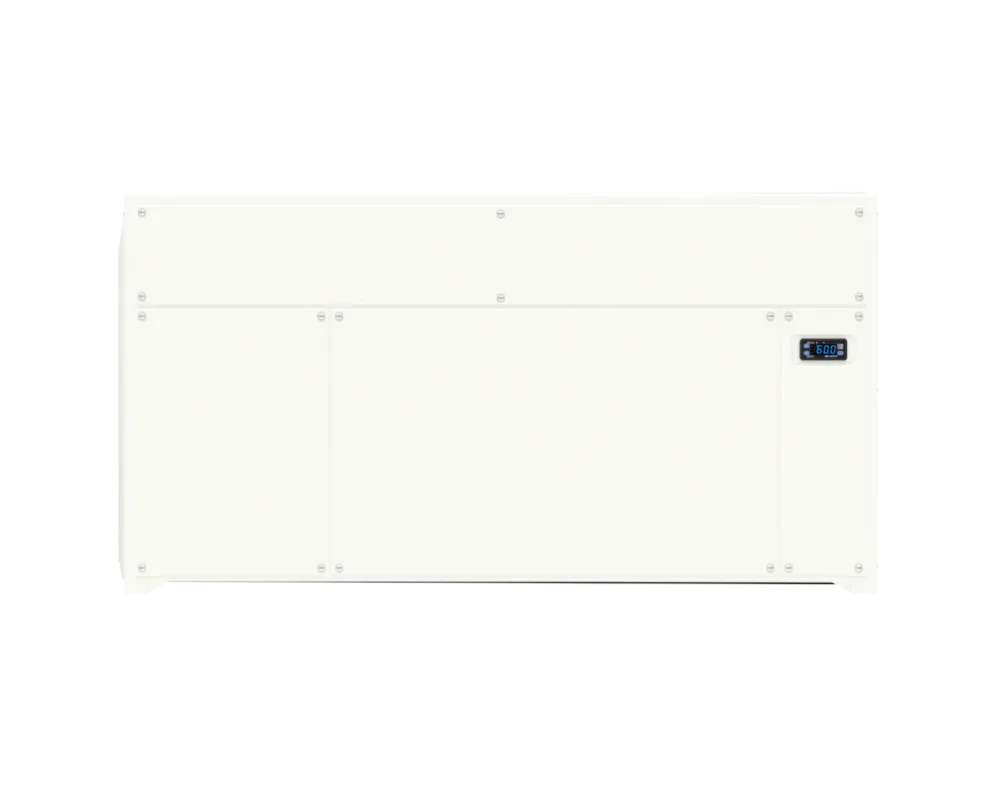

DRY 500 DUCT

Cutting-Edge Dehumidification Technology

The Dry 500 Duct boasts state-of-the-art dehumidification technology, ensuring optimal moisture control in your indoor pool area. With an impressive dehumidification capacity of up to 300l/day, this unit effectively maintains a comfortable and safe swimming environment.

Energy Efficiency for Cost Savings

At Microwell, we understand the importance of energy efficiency. The Dry 500 Metal is engineered to provide outstanding dehumidification performance while keeping energy consumption in check. By reducing operational costs, this unit helps you save money and reduce your environmental footprint.


Robust Metal Construction for Durability

Designed to withstand the rigors of poolside operation, the Dry 500 Duct features a rugged metal housing. This durable construction not only ensures a longer lifespan for your dehumidifier but also protects it from the challenging conditions often found in indoor pool areas.

User-Friendly Control Panel

Managing the Dry 500 Duct is a breeze thanks to its intuitive control panel. Easily adjust settings, monitor humidity levels, and set timers with user-friendly controls. For added convenience, you can seamlessly integrate it into your building's automation system, enhancing overall operational efficiency.

Maximize savings - save by drying

Experience unparalleled efficiency with our cutting-edge pool dehumidifier, boasting a remarkable energy consumption rate of only 0.423 kWh per liter. This revolutionary system employs advanced technology to extract excess moisture from the air with minimal power usage, ensuring highly economical operations. By efficiently controlling humidity levels in your pool area, this dehumidifier not only enhances comfort but also significantly reduces energy costs, making it a sustainable and cost-effective choice for maintaining an optimal indoor pool environment. Dive into savings while enjoying superior performance with our eco-friendly DRY500 Duct pool dehumidifier.

Technical data and more

If you want to know more just click


Microwell DRY swimming pool dehumidifiers are designed with customer in mind. Built with best materials, modern equipment and carefully executed processes on every step of product development, they offer advanced functionality and the widest selection of accessories for customer‘s satisfaction.

Specially developed dehumidifiers for residential and hotel pools, spa and jacuzzi. If you are looking for a humidity control technology in a private pool, hotel or spa, by Microwell you are in the right place.

DRY500 will prevent condensation on your windows and walls. It will prevent bacteria grow and strange humid smell or damp feeling. It will do its job fully automatically and quietly.

DRY dehumidifiers are leading Microwell swimming pool dehumidifiers used in 30+ countries to mainly control the humidity in pool and spa areas. DRY dehumidifiers are also vastly used for areas that require effective humidity control with a machine which is as quiet and as less disturbing as possible.

Ducted dehumidifiers are the ideal solution for new pools when the pool is not built yet (ducted dehumidifier should be the first choice). Ducted dehumidifier is in principle the same machine as an ambient or compact dehumidifier. Main differences are higher air flow with higher external pressure and ability to be connected to air ducting. The basic prerequisites when designing an air treatment solution (in this case the intention to dehumidify) are air flow and air circulation. Another big advantage of a ducted dehumidifier is a safety, because all electric is in a technical room, or somewhere where safety and dry microclimate

DRY500 DUCT is a duct pool dehumidifier suitable for pools and water areas with water surface up to 50m2.

DRY500 DUCT is designed for high moisture extraction, low energy consumption and low noise.

DRY500 DUCT extracts 52 liters of vapor from air per day at typical pool conditions of 30°C air temperature and 60% relative humidity. The unit is capable of removing 68 liters of moisture at 30°C air temperature and 80% relative humidity.

LOWER ENERGY CONSUMPTION
Thanks to outstanding design, leading technology and up-to-date concepts, Microwell products achieve up to 36% lower energy consumption than the others. Our product saves you money every day and helps to keep your bill under control.

DRY dehumidifiers are low energy dehumidifiers designed to save energy costs every hour they run. DRY500 model uses on average only 1150W of energy. In return the unit provides with an effective humidity control through massive extraction and high heat recovery up to 3500W.

Dehumidify and heat by one device. DRY500 provides with heat recovery of 3500W while consuming only 1150W. The unit, while dehumidifies, provides with a free heating which can be subtracted from your current heating system. You thus will save twice while running this machine. Should more heating be required, the unit can be equipped with either LPHW (Low Pressure Hot Water coil) or electrical heater with a combined maximum heating ability of an amazing 8.5kW!

DRY dehumidifiers are installed in:

  • Swimming Pools
  • Spas
  • Hotels and Wellnesses
  • Hot tubs and Jacuzzis
  • Fitness clubs
  • Gyms
  • Museums and archives
  • Warehouses
  • Drying rooms for laundry, breweries
  • Military storages
  • Bakeries
  • Wine cellars

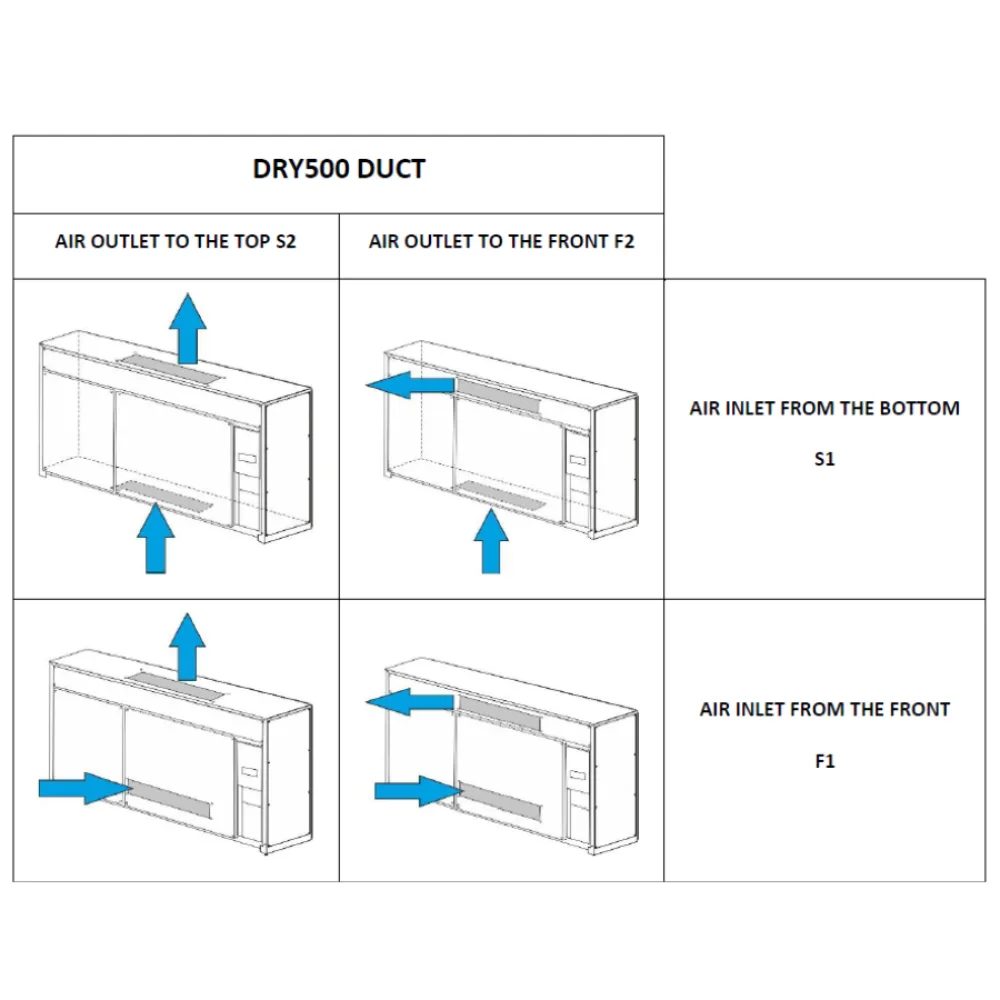

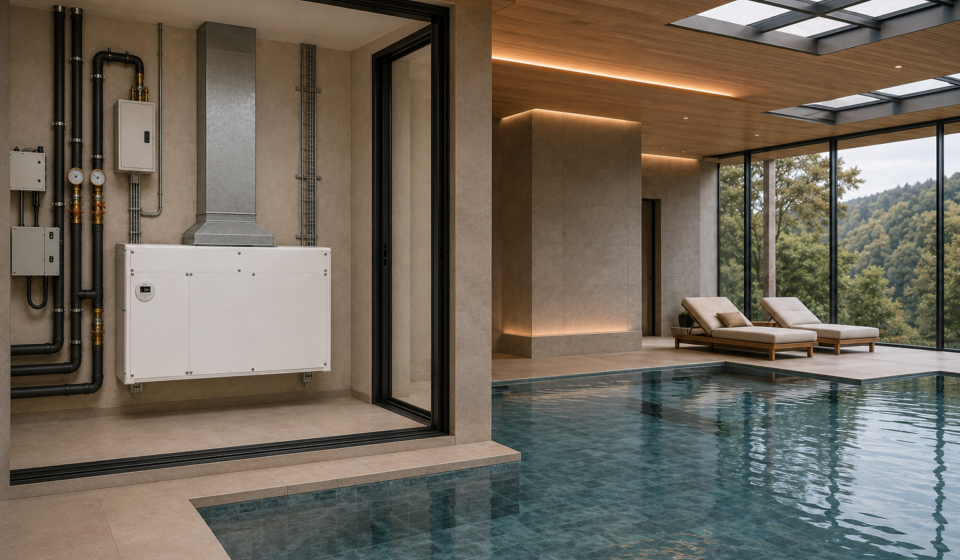

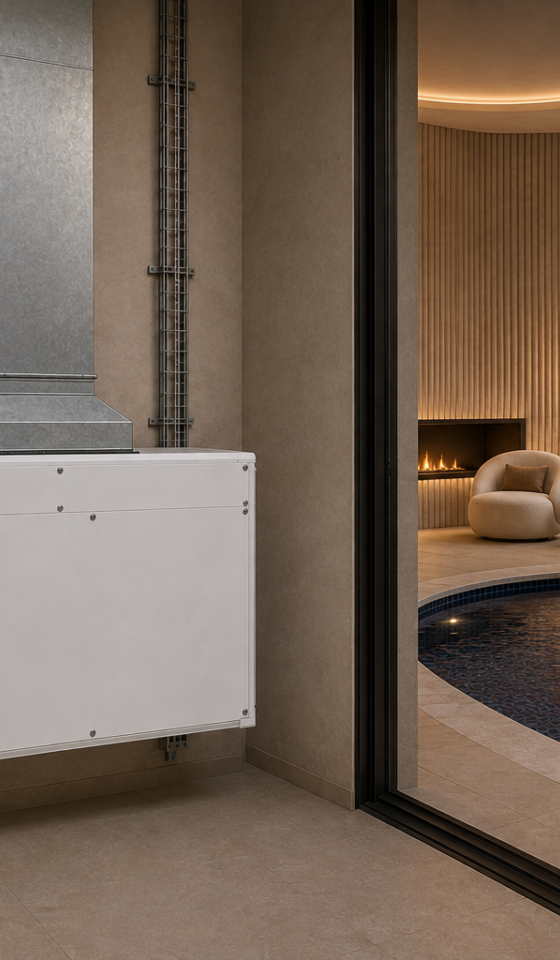

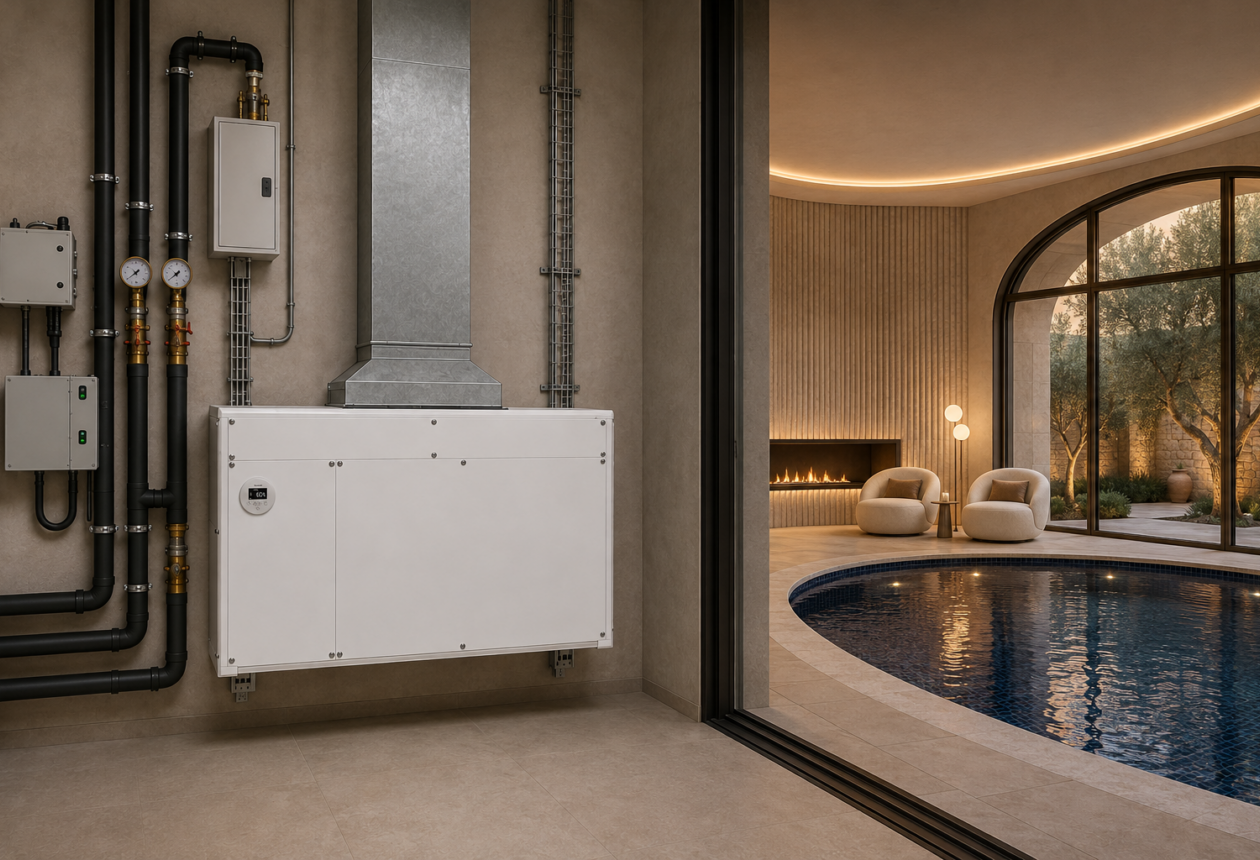

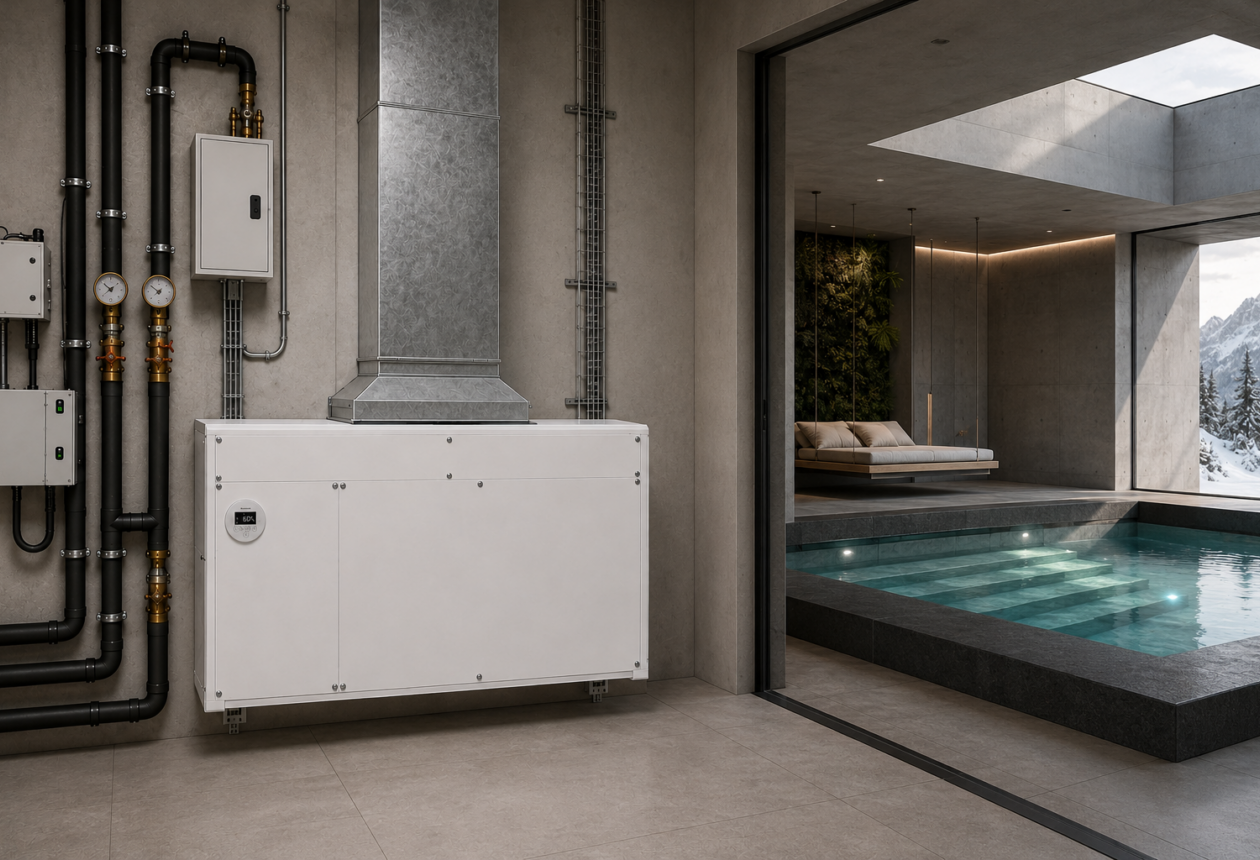

DRY500 DUCT is typically installed in technical room with air ducting installed for air circulation in pool hall.

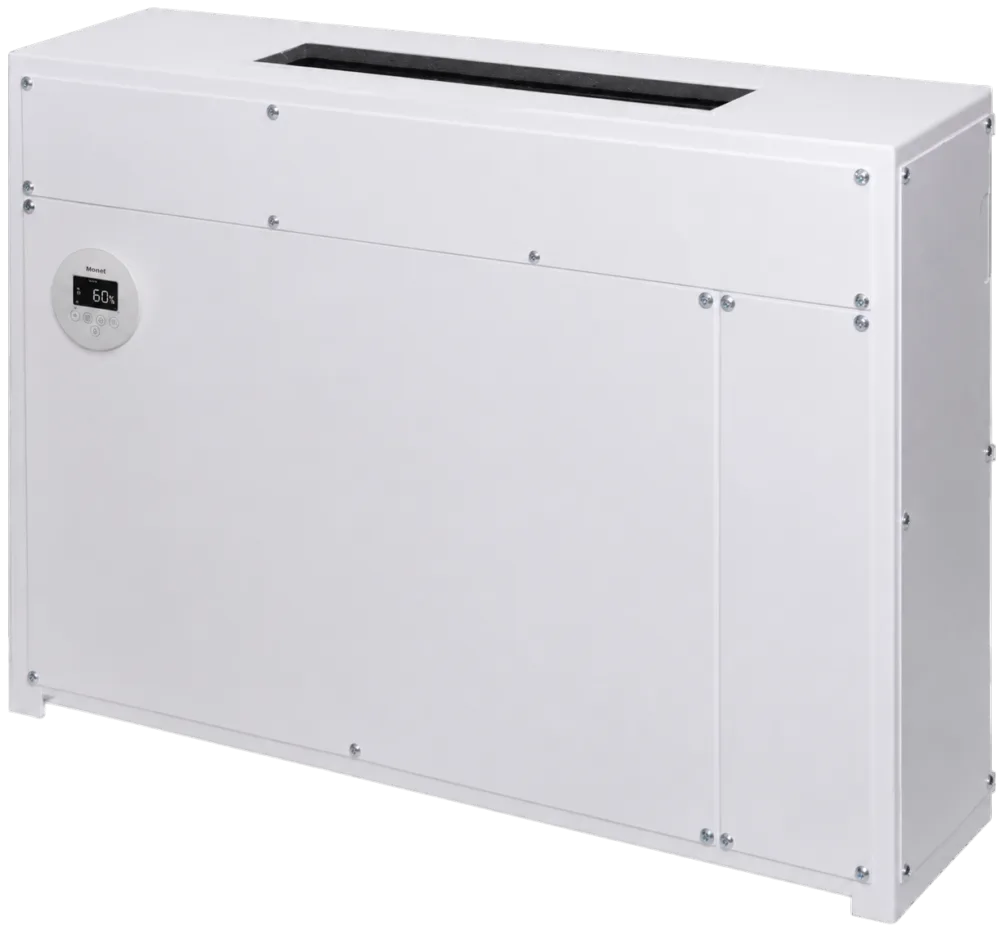

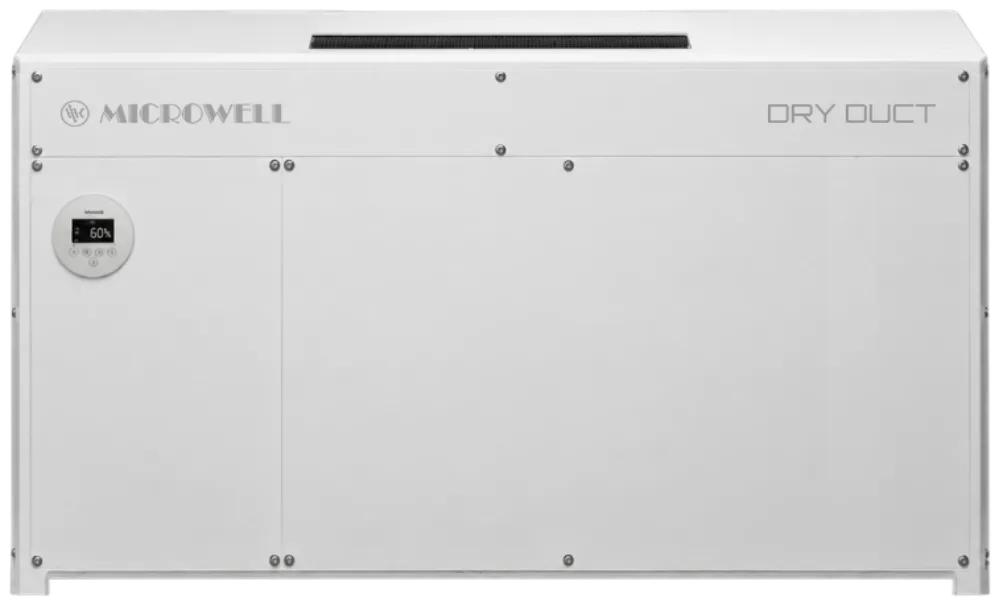

DRY500 DUCT comes in a cover made from galvanized steel finished with powder coated enamel protected with anti-corrosive plastic layer. The cover is by standard painted by white RAL9010 color. The cover can be painted in any color according to customer’s wishes. Material is 100% resistant against typical aggressive substances in pool such as chlorine or salt. Cover is well grounded with all other metal parts of the unit providing full safety. The unit is one compact piece only 1245mm in length, 253mm in depth and 660mm in height, it thus can fit to small technical chamber. Air ducting connections are done by a rectangle shape 500x100mm from the bottom (air in) and from the top for air out.

Control or regulation of the unit is very important for a customer. DRY500 model provides with all possible options you may require. You may go for a classic old school built-in rotary humidistat; you can upgrade to a remote wired humidistat to place it on a wall; you can regulate the unit using remote wireless digital control or simply use built-in digital control. All controls are designed for accuracy and customer comfort.

Noise level is a frequently asked question. As duct machines are installed in technical room and the only connection with pool hall is the air ducting. No compressor noise or vibration enters the pool hall. Despite that , Microwell equips the DRY dehumidifiers Microwell unique technology ultraQUIET+ eliminating any excessive noises or vibrations. Typical noise level of a quiet room is 30dB(A), typical conversation between 2 people can rise up to 60dB(A). Unit’s 56dB(A) at air flow of 1000m3/h @ 200Pa, extraction rate of 68 liters and extra heating of 8.5kW just confirms how unique Microwell machines are.

DRY500 model uses 5 speed AC fan simulating DC energy saving operations.

DRY500 model is gentle to environment and eco-friendly as it uses the most advanced R410A refrigerant.

The unit can supply fresh air in excess of 30% of its nominal air flow, i.e. about 240m3/h. The air is effectively preheated by hot condenser prior it enters pool hall.

Air aggressiveness is very important to a dehumidifier as it typically operates in a chlorine or salty environment. Microwell ensures probably the highest protection of the whole machine and its components. The coils are from anodized aluminum fins coated with GoldFin epoxy finish. Copper pipes are finished with zinc coating for a maximum protection against aggressive substances present in typical pool’s air. All metal parts are galvanized and powder coated, where needed stainless steel or titanium of highest pureness is used.

The units are manufactured in European Union complying with very strict engineering standards. To ensure absolute quality, each unit is individually tested for full operations before it is packed and loaded on truck or container. The factory is certified according to ISO9001, ISO14001 and ISO15001. Each unit is certified against EU standards holding CE certificates and full Conformity. Other compliant standards are RoHS and IP44.

DRY dehumidifier series have widest range of makes and accessories options on the market. The unit can be adjusted and tailored is such a way that seemingly there is no pool or spa or hotel this dehumidifier could not serve. Please see below section of Standard equipment and Accessories for more information.

Typically, the unit is in stock near you. Due to many different ways the unit can be tailored on demand, it may take up to 10 days to deliver the unit to you.

DRY dehumidifiers are amazing due to their micro+ features providing they have by standard. More info micro+.

Humidity is not an enemy when controlled but can cause serious troubles otherwise. Ideal humidity for pool or spa users is when they feel comfortable. This feeling is achieved by an ideal relative humidity from 55% to 65%. Humidity above 70% is detected by condensation on windows and walls and the humidity continuously deteriorates the pool or spa environment. It is also a perfect environment for mould and bacteria to grow. Humidity lower than 45% actually causes a reversed problem to bathers in the form of dry feeling and possible harm to mucous tissue. The innovative series of Microwell dehumidifiers keep the humidity at ideal 55%-65%.

If you need assistance in sizing the right dehumidifier model for you please use our online calculator providing with an instant model type needed for your pool. CALCULATOR

Or click on HOW CHOOSE A DEHUMIDIFIER on the left side of your screen.

DRY 500 DUCT product components

Offering an in-depth look at the Dry 500 DUCT, explore its intricate components for a comprehensive understanding of its advanced features.


360 view

MICROWELL OFFERS THE WIDEST ACCESSORIES RANGE ON THE MARKET

Technical data

Product
Pool surface (m²)
Extraction rate (l/24hrs) 30°C/60%RH
Extraction rate (l/24hrs)30°C/80%RH
Air flow (m3/h / Pa)
Noise level at 1m dist. (dB(A))
Power consumption (W)
Heat output (W)
Refrigerant
Dimensions netto (w/h/l)
Weight netto/brutto (kg)
DRY 300
30
36
48
550
42
700
1900
R410A
from 780x660x255
from 40 to 56
DRY 400
45
48
58
600
42
700
1900
R410A
from 780x642x255
from 40 to 56
DRY 500
50 - 60
52 - 66
68 - 101
800 - 1000
44 - 56
1000
3500
R410A
from 1245x642x300
from 60 to 90
DRY 800
80 - 90
88 - 90
135 - 136
1100
46 - 58
1600 - 1700
5100
R410A
from 1247x950x300
from 100 to 135
DRY 1200
110 - 120
112 - 120
170 - 181
1200
46 - 60
2150 - 2250
5250
R410A
from 1247x950x300
from 103 to 136

Manufacturer reserves the right to change the technical data without notice.
