DRY 1200Horizon

DRY 300 | 30 m²

DRY 400 | 45 m²

DRY 500 | 60 m²

DRY 800 | 90 m²

DRY 1200 | 120 m²

Metal Silver TTW Duct Wave

Metal TTW Duct Wave

Metal TTW Duct Wave Horizon

Concealed
Designed for installation in false ceiling, wall or floor
Air flow up to 2.150 m3/h
External pressure up to 275 Pa
Operational point of 1.500m3/h with 200Pa
Extraction rate up to 194 kg/day A30RH80
500mm height
G3 filter
1phase / 220-240V

EAN CODE: 0745314271257

Where to buy

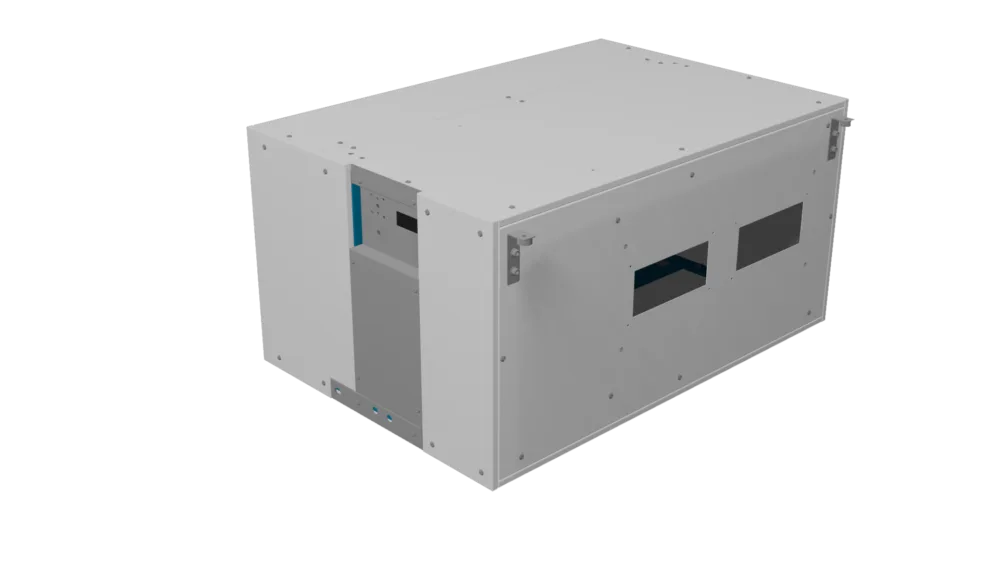

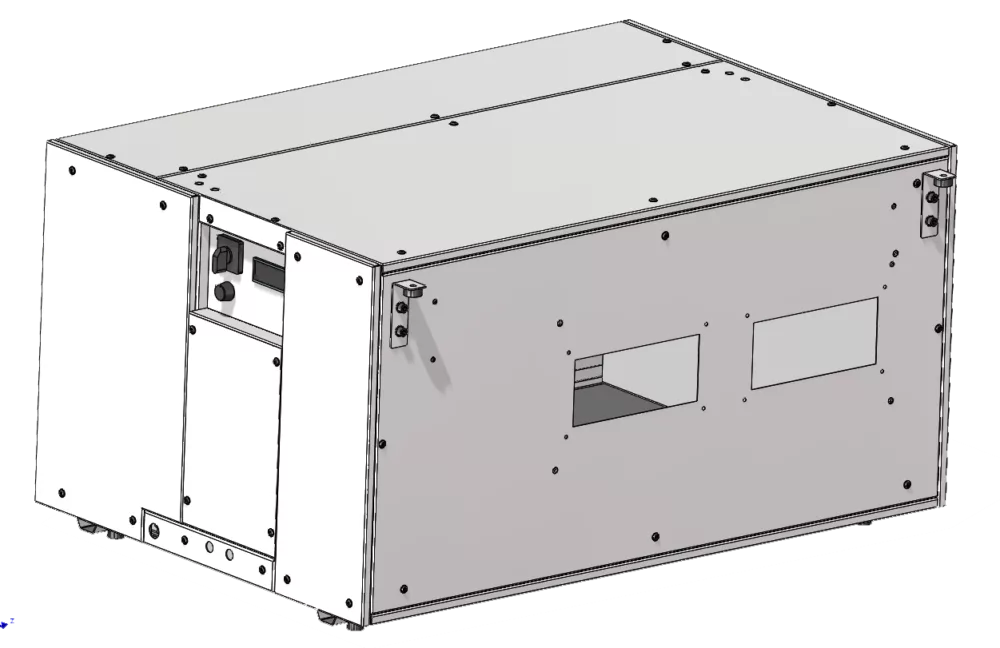

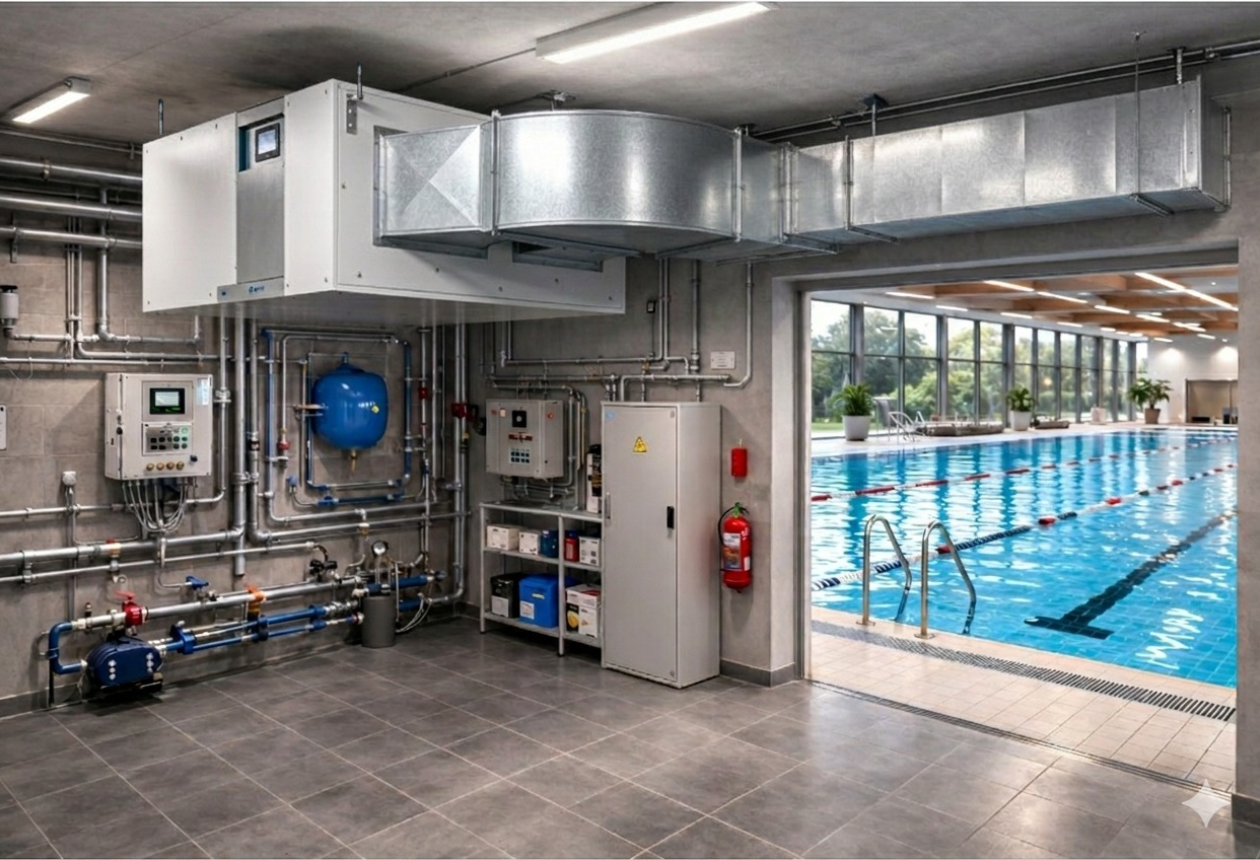

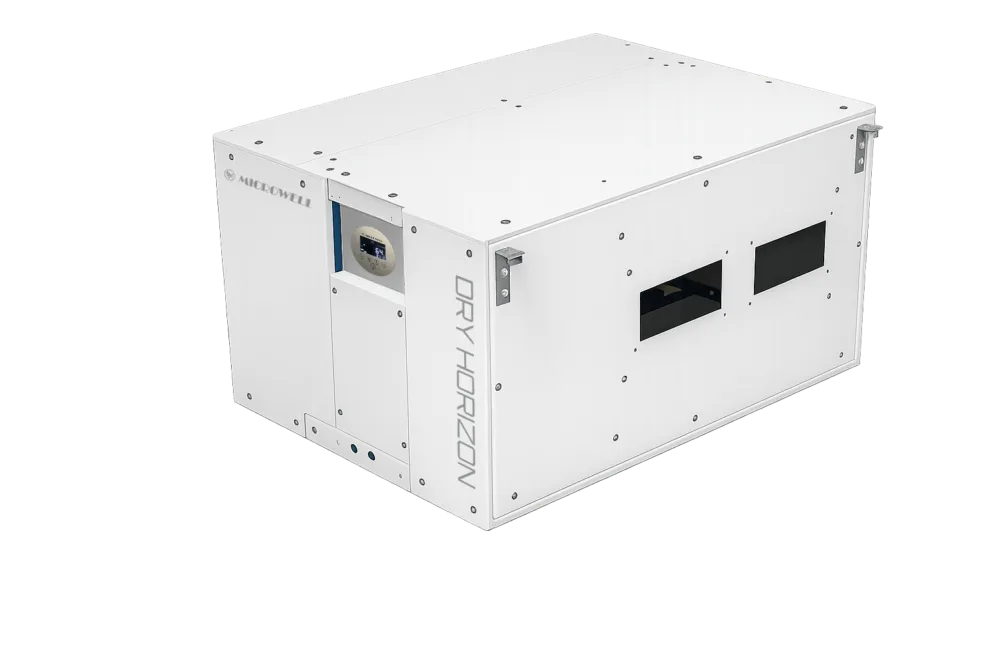

Explore our most powerful dehumidifier primarily designed to maintain ideal climate in swimming pools. It controls humidity, air temperature and ventilates fresh air. Its design calls for installation in a technical room, ceiling or by stairs in a plant room. It is made in a practical shape allowing placement on the floor, wall or ceiling. It is capable of extracting almost 200 liters of vapor from air per day (at 30°C air temperature and 80% relative humidity). It has powerful fans that can reach massive 2.150m3/h air flow. Explore HORIZON DRY.

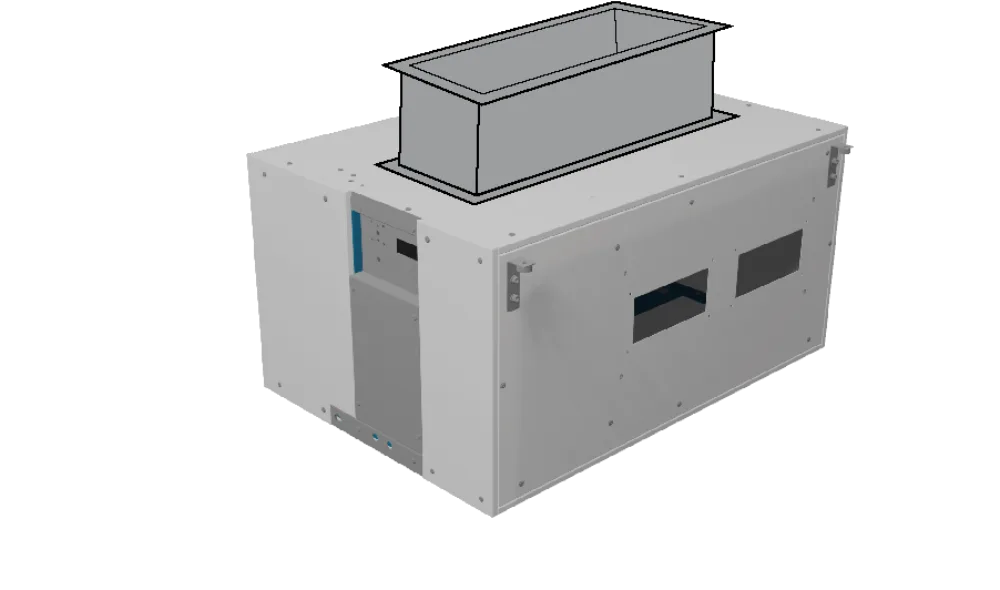

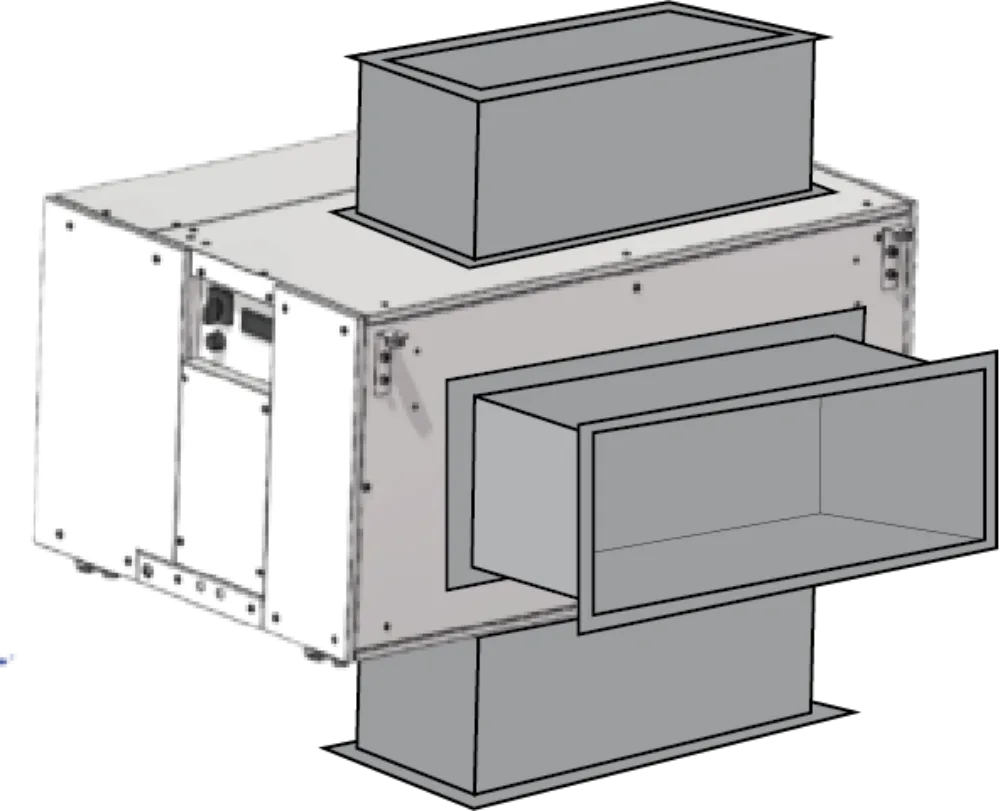

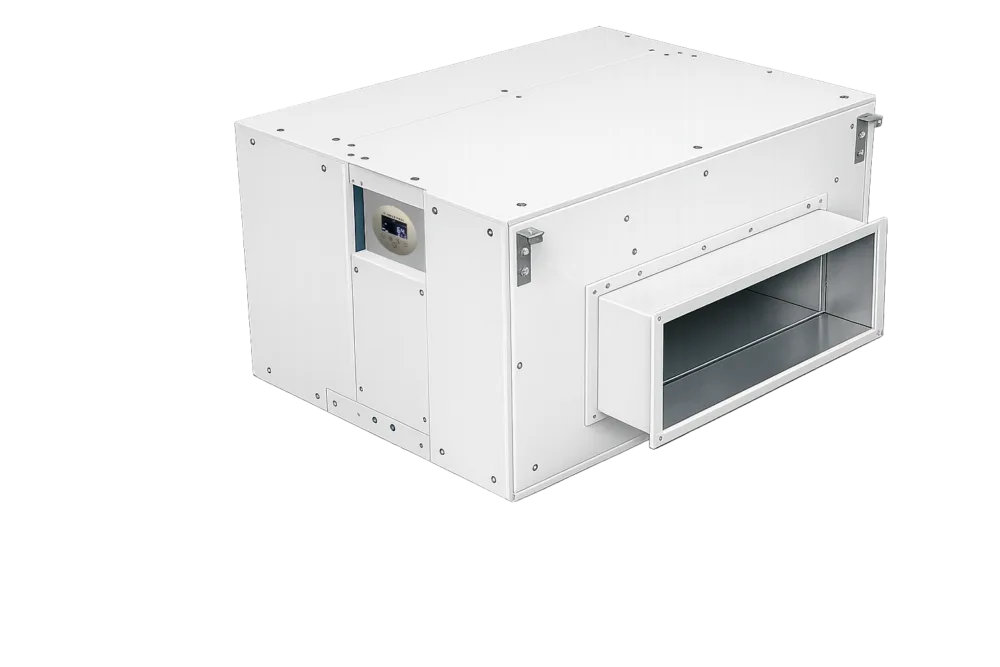

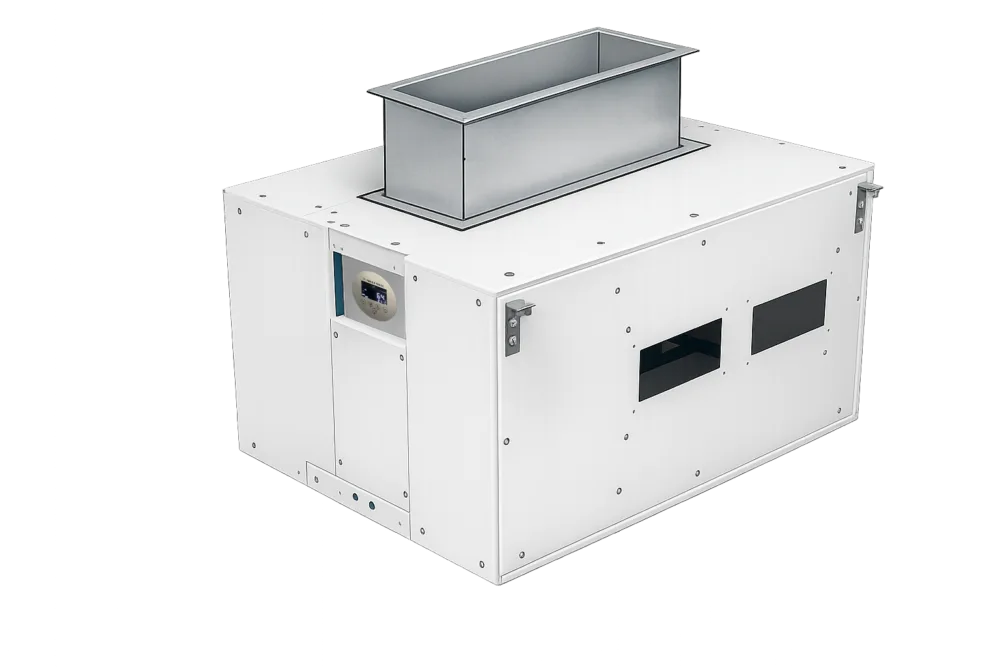

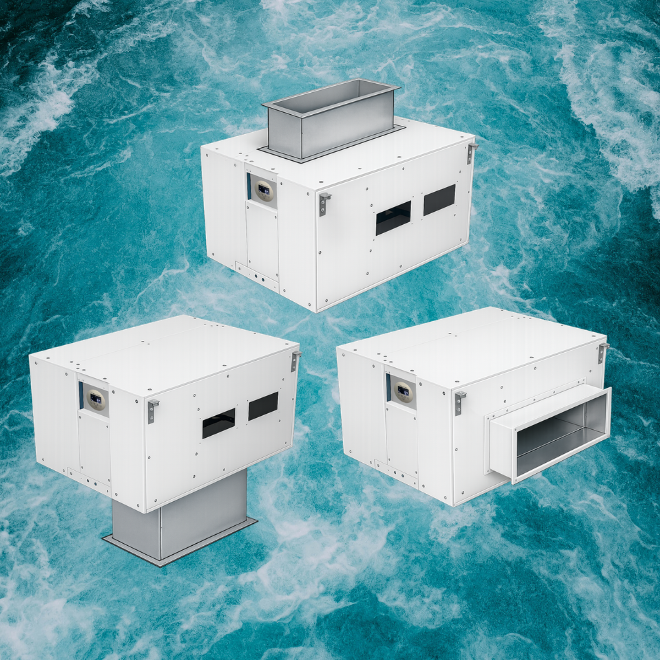

3 air outlet directions

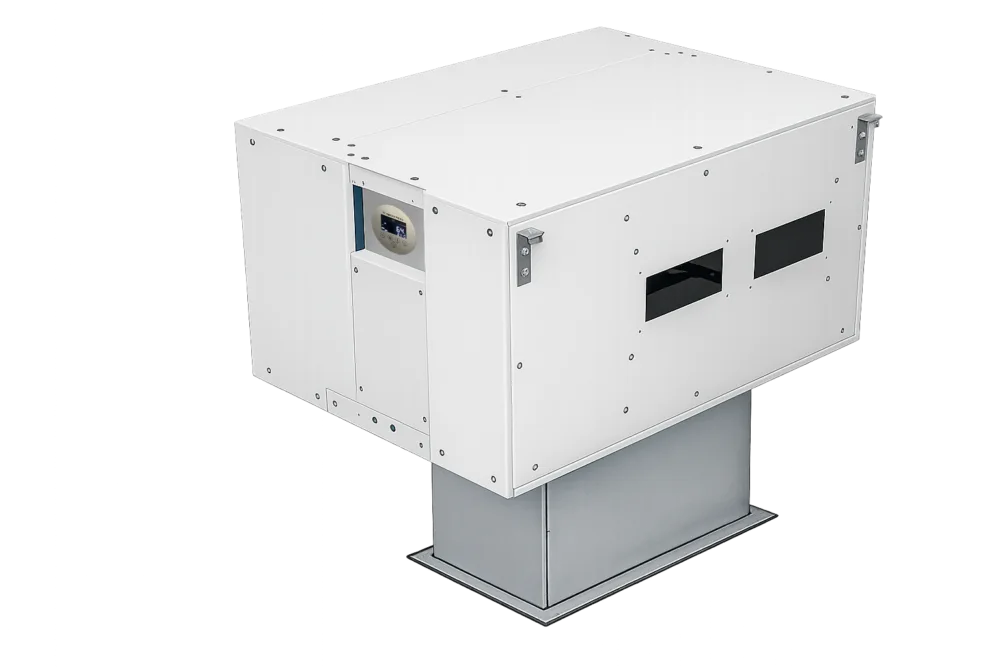

DRY HORIZON is made with complete flexibility in mind. In a standard issued unit you have 3 various air outlet connections. You can connect from the side, from the bottom and to the top. Thus no matter the position or placement of the unit, you still will be able to easily connect any air ducting.

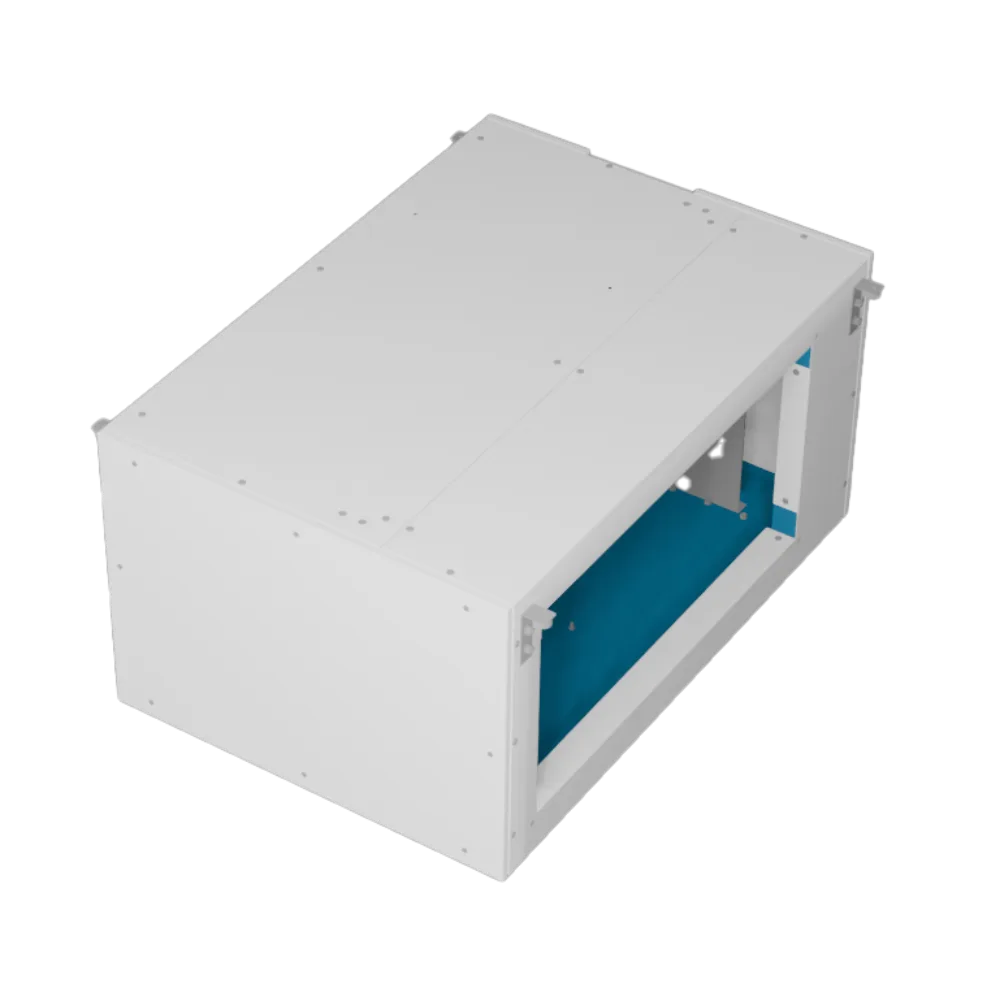

Service / maintenance hatch

Maintenance or service cannot get easier. We designed large hatch which is actually about a size of the entire side of the dehumidifier. This allows any installer or technician to have full access to all inner parts, sensors and components. This way we achieve what we all want, a quick cost-efficient maintenance or service.

+15°C to +36°C applications

DRY HORIZON can work efficiently in environment with air temperature starting at 15°C up to +36°C.

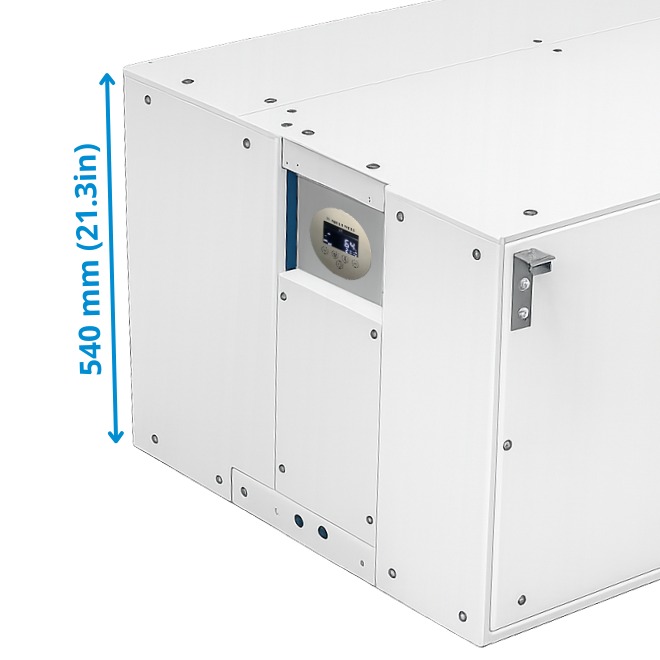

Only 540mm in height

We wanted the DRY HORIZON to be as sleek as possible. For a dehumidifier of this capacity, the 540mm (21.3”) of height is really thin. The whole unit will easily fit into most technical and plant rooms or false ceilings in pools.

Massive air heating available

Up to 15.5kW water heating coil is available with the unit which is enough for more than 300m² of floor space to be heated. Along with the additional air heating, the unit provides cost-free heat recovery up to 6.0kW. Combined, this is enough to cover more than 400m2 of floor space.

GoldFin exchanger protection

Crafted with precision and innovation, the GoldFin epoxy protection shields the heat exchanger fins against corrosion caused by chlorine, salt, and moisture. This advanced technology not only extends the lifespan of the exchanger fins but also enhances heat transfer efficiency, resulting in a more energy-efficient and cost-effective solution for your pool heating needs.

Technical data

	HORIZON DRY800	HORIZON DRY1200
Pool surface, m2	90 m2	120 m2
Extraction rate @ 30°C / 60% RH, liters per 24 hours	94 l/24hrs	127 l/24hrs
Extraction rate @ 30°C / 80% RH, liters per 24 hours	141 l/24hrs	194 l/24hrs
Air flow, m3/h / Pa	1.150 m3/h \| 150 Pa	1.800 m3/h \| 150 Pa
Maximum air flow, m3/h at lowest external pressure	1400 m3/h	2.150 m3/h
Available external pressure, Pa	275 Pa	275 Pa
Accoustic pressure, dB(A) 1m	58 dB(A)	64 dB(A)
Power consumption, W	2.000 W	2.300 W
Power supply, V / Hz	230V / 50Hz	230V / 50Hz
Protection	IPX4	IPX4
Weight	102 kg	108 kg
Dimensions L x W x H	1080 x 740 x 540 mm	1080 x 740 x 540 mm
Air connection INLET	800x400 mm	800x400 mm
Air connection OUTLET	600x200 mm	600x200 mm
Air connection direction OUTLET	3 - Horizontal, vertical upwards, vertical downwards	3 - Horizontal, vertical upwards, vertical downwards
Filter	External, G3-G7	External, G3-G7
Air heating	External	External
Installation position	3 – Ceiling, Wall, Floor	3 – Ceiling, Wall, Floor
Fresh air supply	Yes	Yes
Heat recovery	5.100W	5.300W
