Synairgic

Back

Intelligent hybrid system combining

the power of DRY X and DRY DUCT

3 KEY ADVANTAGES OF THE SYNAIRGIC

Reliability without compromise

Two separate modules increase operational reliability. Even during service or maintenance, the pool hall remains protected.

Easier installation

Compact units are easier to transport, handle, and install. An ideal solution where access is limited and a large central unit would create complications.

Efficient year-round operation

In winter, it dehumidifies efficiently and uses heat effectively; in summer, it provides fresh air without overheating the pool hall.

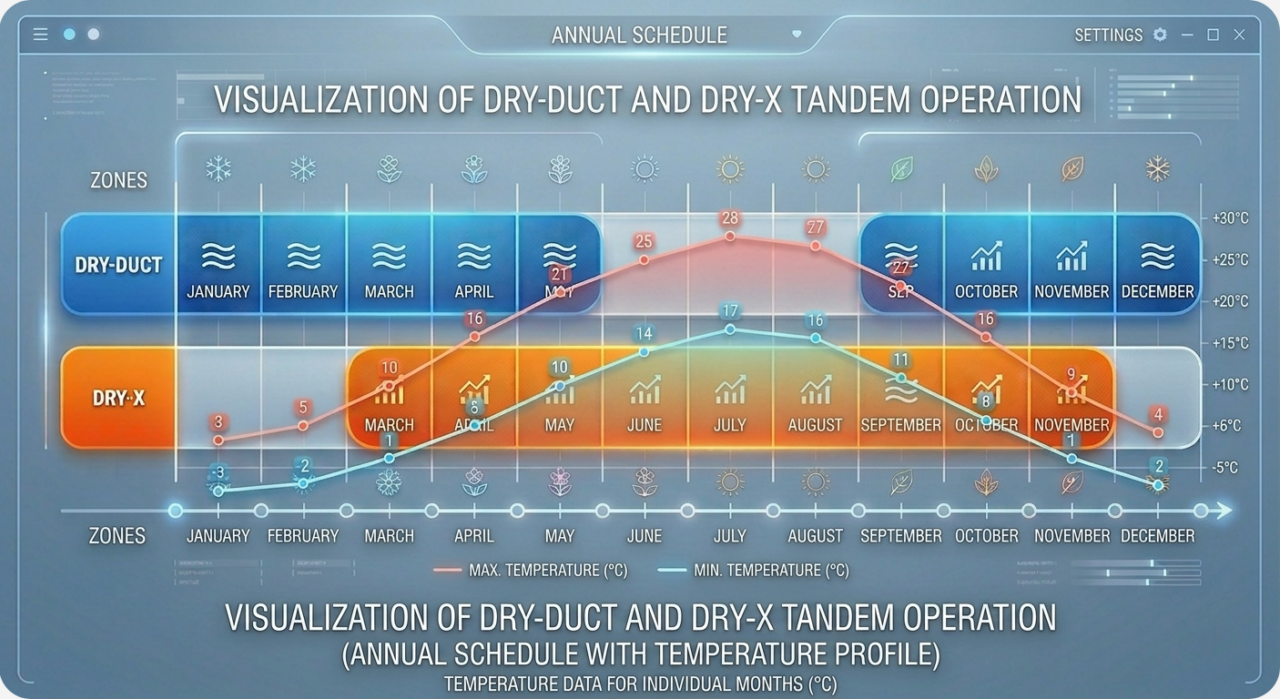

Year-round operating schedule

SYNAIRGIC adapts to the season, maximizing dehumidification and heat use in winter, while ensuring efficient ventilation and fresh air supply in summer.

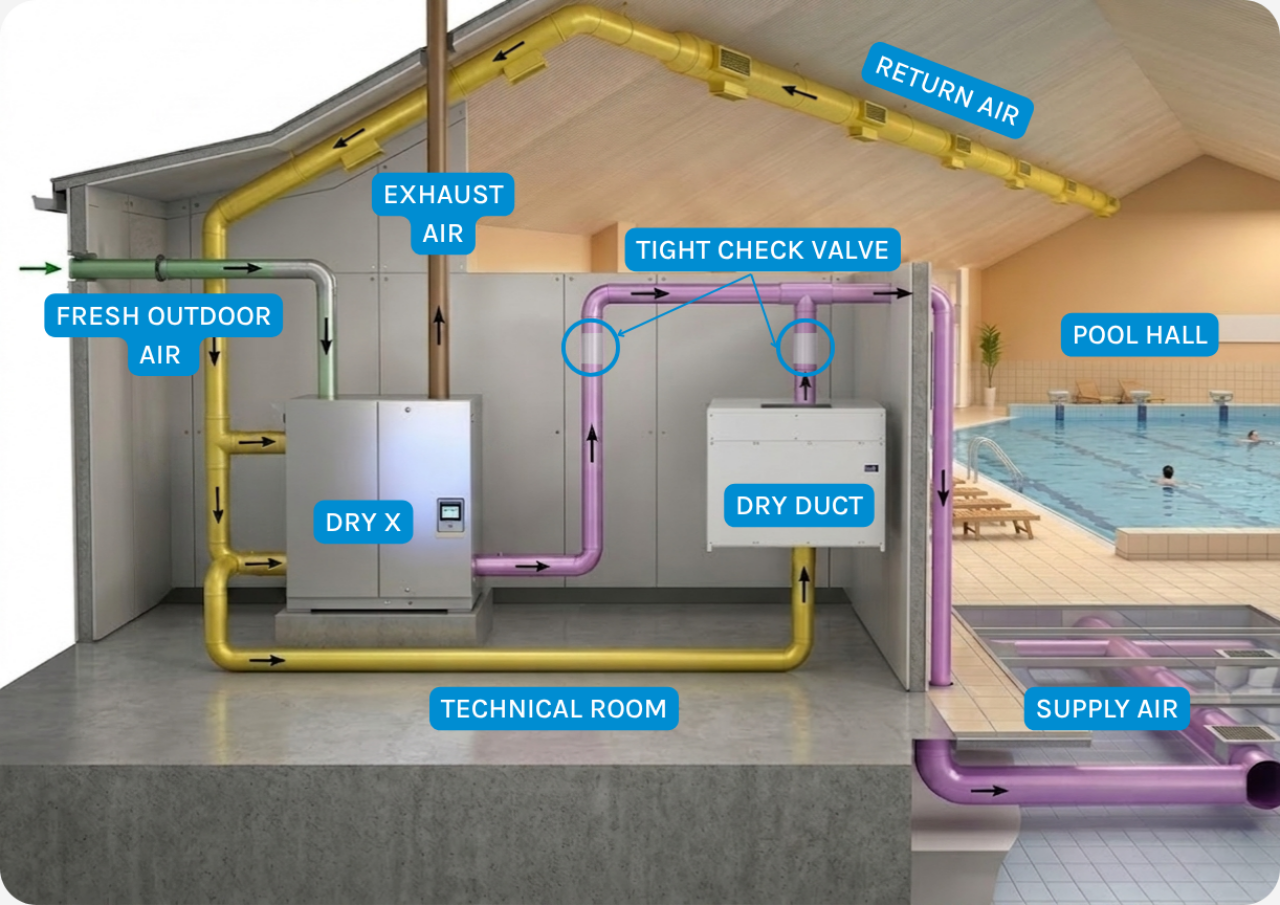

How they supply air to the pool hall

Tandem vs Central unit

CRITERION	TANDEM	CLASSIC CENTRAL UNIT
Installation	Two separate compact units	Often difficult handling
Service	One unit can keep running without issue	Failure of the whole system
Components	Serially manufactured parts	Often larger and more expensive parts
Costs	Lower investment and service costs	Higher investment
Year-round operation	Adaptive	Less flexible
Ideal use	Family pools, smaller projects, renovations	Large projects without space constraints

Technical data

PROPERTY	DEHUMIDIFIER	HEAT RECOVERY UNIT	SYSTEM
Technology	DRY DUCT 1200	DRY-X 1200	Combination of both
Fresh air	0–30% (standard)	0-100%	0-100%
Operation	Ideal (down to -20°C)	Limited (down to -15°C)	Ideal (down to -20°C)
Airflow	1 200 m3/h	935 m3/h	2 135 m3/h
Recommended round duct	d 315 (velocity 4.3 m/s)	d 250 (velocity 5.3 m/s)	d 400 (velocity 4.7 m/s)
Recommended rectangular duct	(velocity 4.3 m/s)	(velocity 5.3 m/s)	(velocity 4.7 m/s)
Dehumidification capacity at 30°C, 60% RH (outdoor +10°C, 70% RH)	300 × 250 (velocity 4–6 m/s)	250 × 200 (velocity 4–6 m/s)	400 × 300 (velocity 4–6 m/s)
Dimensions	1300 mm x 1020 mm x 370 mm	930 mm × 1082 mm × 589 mm (height withoutmounting feet: 1052 mm)
