Microwell swimming pool heat pumps are designed for heating or cooling the water in pools and hot tubs at minimum operational costs.
HP 1500 BLACK Inverter is a powerful heat pump suited for pools up to 70m3 in volume.
HP 1500 BLACK provides 11.5 kW of heating capacity at conditions of air temperature 26°C, water temperature 15°C and air humidity 70%. This heat pump can provide up to 15.4 kW of heating at typical conditions of air temperature 27°C, water temperature 26°C and air humidity 80%.

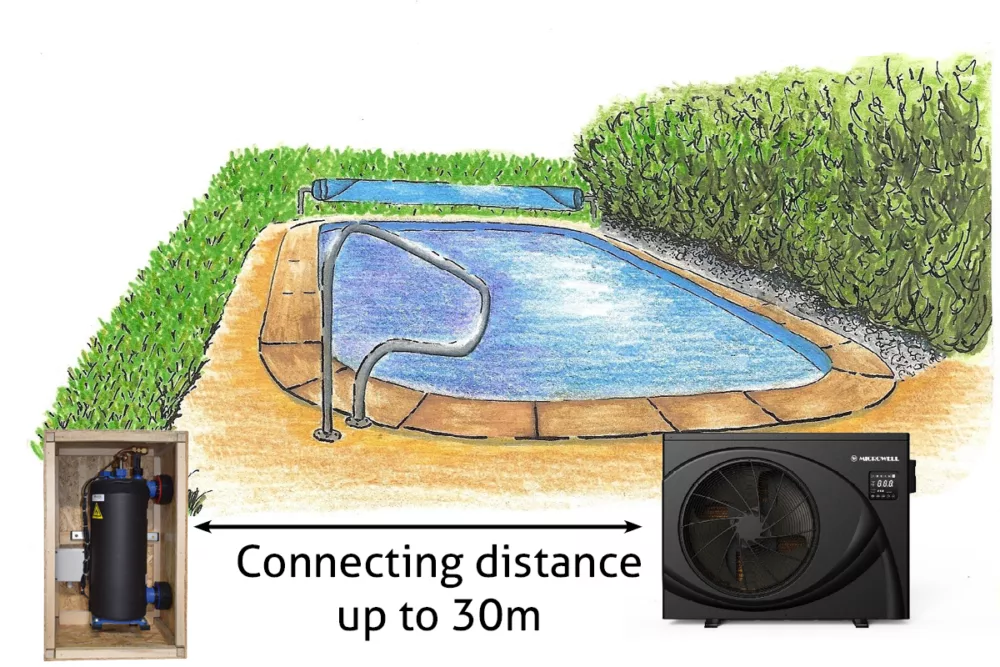

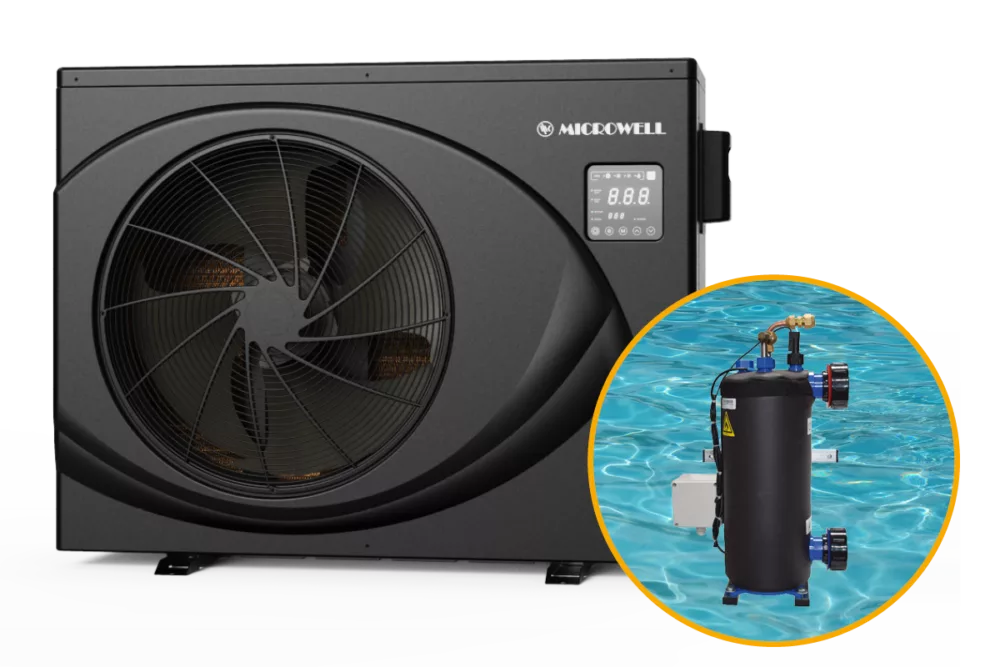

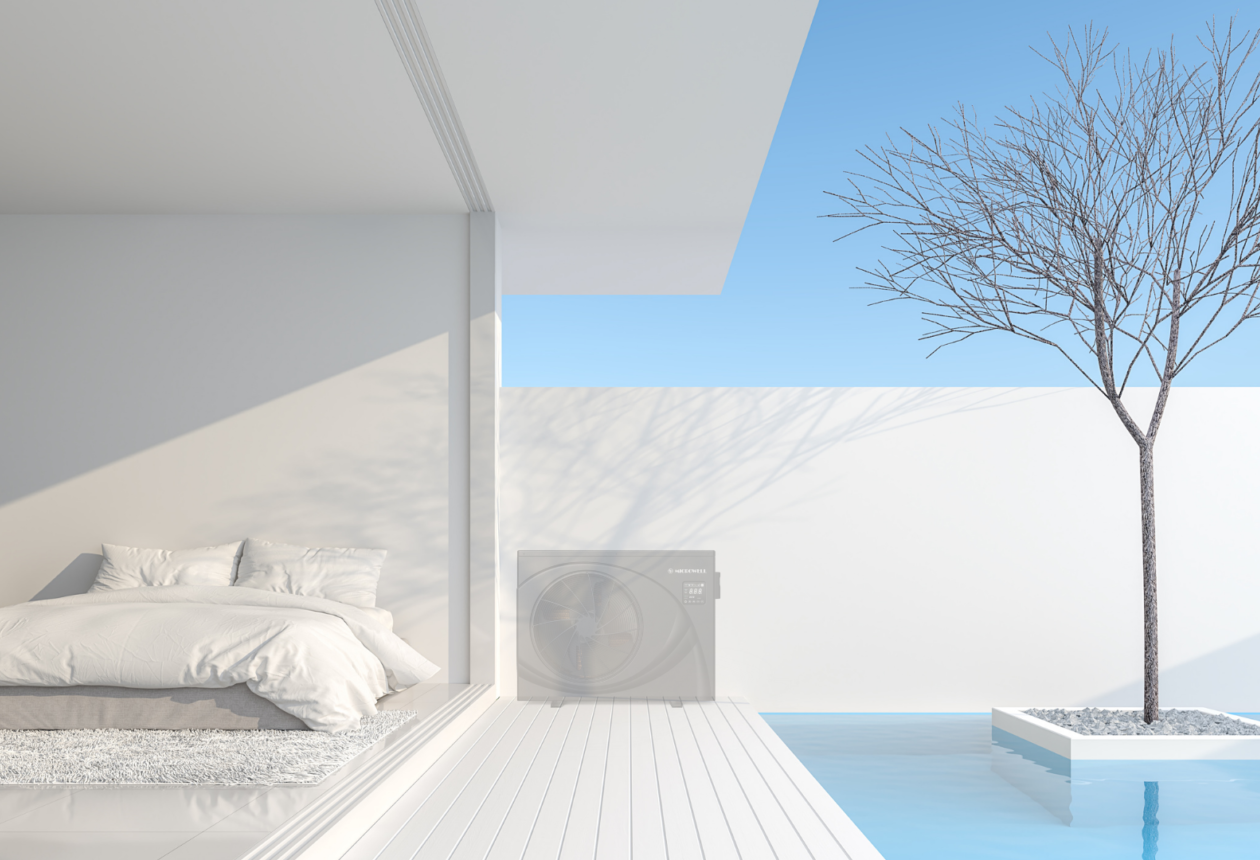

SPLIT heat pump consists of two blocks. Outdoor unit is the source of heat. It contains a compressor, ventilator and air heat exchanger. Indoor unit contains water heat exchanger and control sensors. Outdoor unit is placed away from a pool as far as 30m horizontally and 15m vertically. The result is warm water without seeing or hearing the heat pump working.

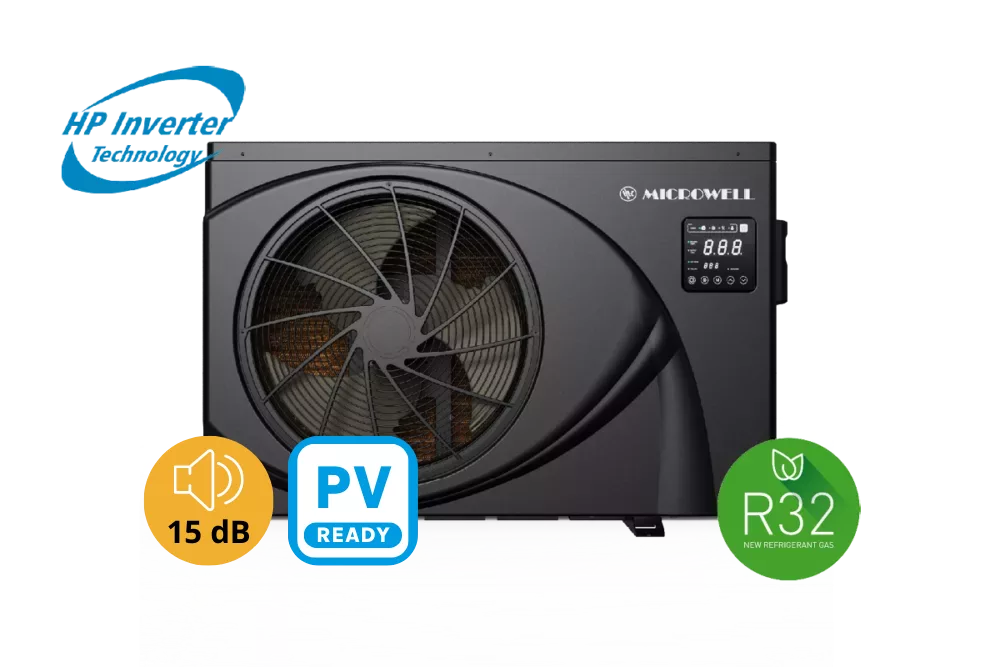

HP Inverter technology
Inverter technology enables powerful yet quiet performance of Microwell heat pumps, while minimising the energy consumption. New Microwell models come exclusively with R32 gas.

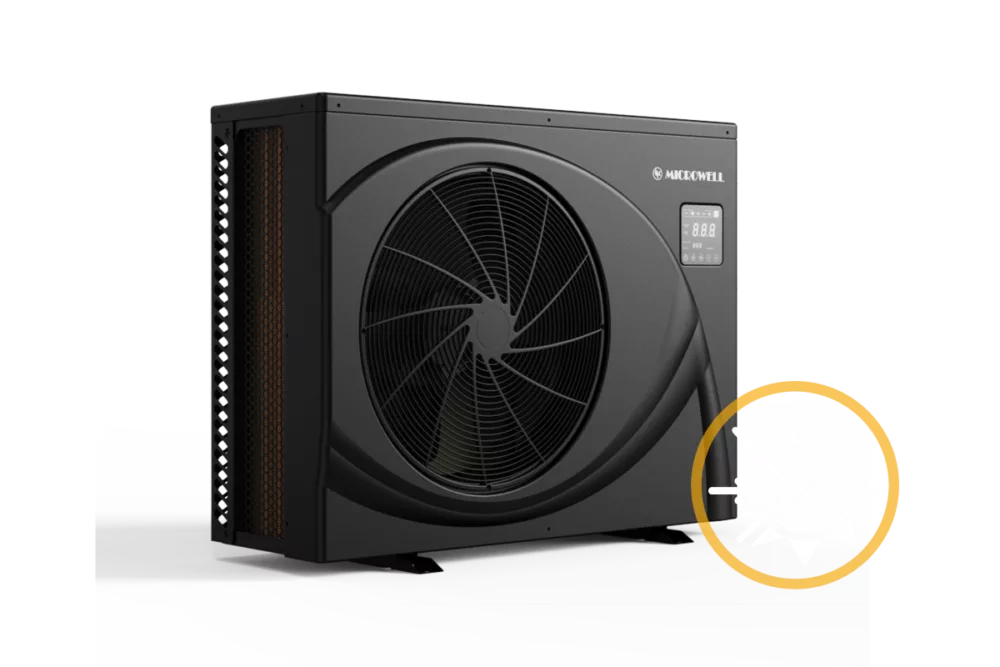

Heat and cool with one device. Heat pump HP 1500 BLACK is designed for heating and cooling. The control is very simple. When you set your desired water temperature, the heat pump will automatically heat or cool to keep your desired temperature. HP 1500 BLACK Inverter provides with up to 5.4 kW cooling output.
Highly efficient ecological refrigerant
Reducing Global Warming & Ozone Layer Depletion by HP production The quantity of R32 refrigerant used is significantly lower as compared to the R410A refrigerant. Consequently, this results in decreasing the potential of global warming and minimal depletion of the ozone layer. That´s why Microwell developed the new generation of swimming pool heat pumps, working on the principles of R32 refrigerant with higher capacity.
High efficiency. Swimming pool heat pump is designed to compensate higher investment costs by very low operational costs compared to electric or gas heater. Microwell heat pumps are designed for a maximum efficiency reaching COP values up to 7. Efficiency of the heat pump is a ratio between power consumption (energy you pay) and actual heating or cooling output (energy you receive). With electric heater, the ratio is 1=1, i.e. what you consume and pay you get in the form of heat. Gas heaters may reach efficiency of 1.3. Heat pump’s COP of 7 means that you pay for 1kWh and you get 7kWh of energy. In cooling mode the heat pump provides with solid ratio of 4. Heat pump’s advantage is that it is independent from sun, day or night and weather. Currently the heat pump is the most efficient way of water conditioning in pools or hot tubs.
How is heat pump so efficient? Microwell HP 1500 BLACK heat pump is able to extract the heat/cold that is present in ambient environment and leveraged pass it into the pool water. If you take your refrigerator, it creates cold inside the fridge by releasing the heat from the back. Heat pump takes the heat (energy or calories) from ambient air and transforms it into the water. The surrounding air cools down in the process. When working in cooling mode, the excessive heat from water is passed into surrounding air. When heating, higher the ambient air temperature is, more free energy can the heat pump extract and thus reach higher efficiency. At favorable conditions you pay around 15% of heat, i.e. 85% of heat is free. Microwell heat pump is built on currently the most eco-friendly refrigerant R32.

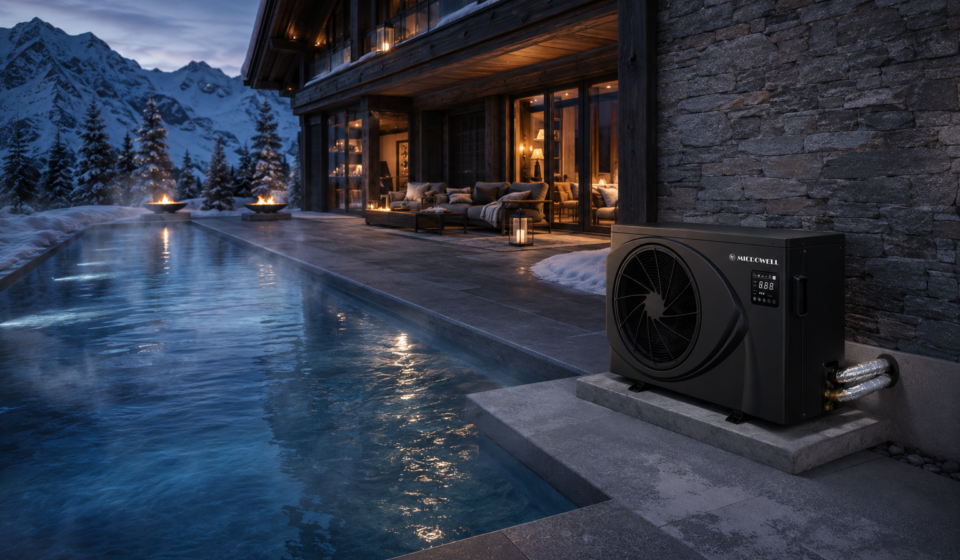

Extraordinary INVERTER line. Microwell BLACK Inverter swimming pool heat pumps provide warm pool:
- At lowest cost possible
- In shortest possible time
- With lowest noise possible
HP 1500 BLACK is equipped with Microwell unique microECONOMY+ feature offering the most economy circulation pump control. Microwell swimming pool heat pumps can be connected to existing water system (filtration) or it can have an individual circulation pump. A swimming pool heat pump needs continuous water flow to heat or cool. Pool heat pump tells the circulation pump when heat pump needs to heat or cool. The circulation is turned on and off according to this request. Microwell applies specially designed software that will sample the water and also put the whole system into sleep for the time when heating or cooling is not required. This saves precious energy and results in lower operational costs of the pool.
Titanium. Amount of titanium is very important to a swimming pool heat pump. The amount talks about the actual heat transfer area, i.e. power and efficiency of each heat pump. Microwell is proudly using 40% more titanium in heat pumps’ water exchangers. This maximizes the performance and efficiency COP&EER far ahead of others. HP 1500 uses 0.6m2 of titanium whereas others use less than 0.25m2.

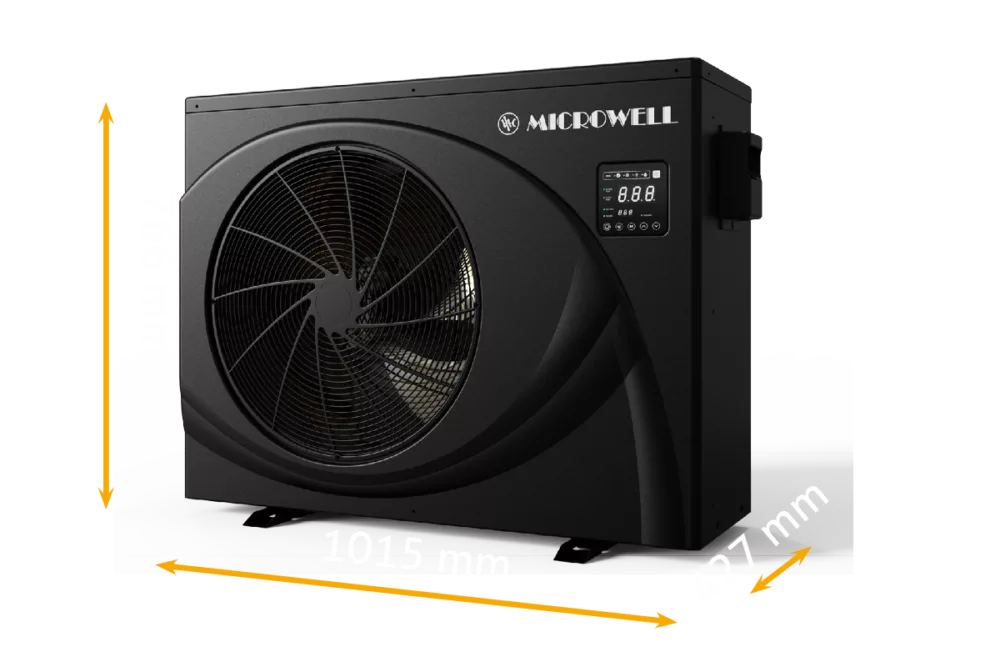

Microwell HP 1500 BLACK dimensions (LxWxH): 1015 x 427 x 766 mm. This saves space and does not protrude in the garden.
Microwell HP 1500 BLACK consumes on average 2.70kW while heating to 15.4 kW (air temperature 27°C, water temperature 26°C, relative humidity 80%) at 41dB(A) only confirms how well designed and manufactured the pumps are.
Extra features. Microwell is continuously focusing on customers’ demands and wishes. Each heat pump is equipped with special features unique about Microwell heat pumps.
antiVIBRATION+ offering special set of mounting silent blocks eliminating excessive vibration and noise.
ultraQUIET+ offering exceptional silence of the unit eliminating any excessive noise.
easyINSTALL+ Heat pump is designed as plug-n-play device.
WiFi module available on demand.
If you need assistance in sizing the right heat pump for you please use our online HOW TO CHOOSE tool
